Re-Dressing and Labelling Years of Tangled Patch Cabling in an Ormeau Office

The problem

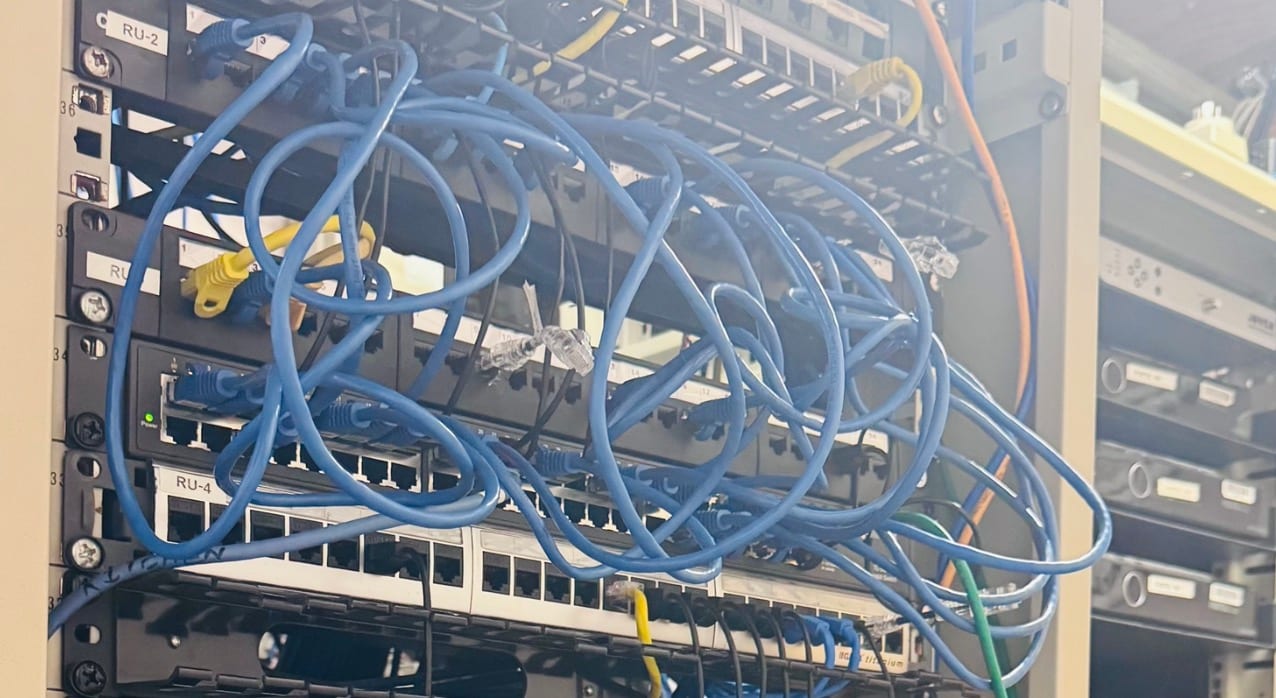

The patch cabling across the panels had built up into a dense tangle over years of ad-hoc changes. Loose RJ45 ends hung unplugged in the bundle, and there was no labelling, so identifying or safely changing a single connection meant hours of careful tracing.

Symptoms reported

Patch leads knotted and looped across several rack units
Unplugged cable ends left hanging in the bundle
No labels on leads or ports
Any change risked disturbing live connections

Diagnosis process

Before recommending parts or a full reinstall, Karma Techs followed a practical diagnostic process to confirm the likely cause and reduce the risk of unnecessary work.

Traced each lead from patch panel port to switch port
Recorded which connections were live and which were abandoned
Checked patch panel ports against the wall outlets they feed
Worked out correct cable lengths for a tidy re-run

Repair work completed

Removed abandoned and overlong leads from the bundle
Re-ran each active connection with a correctly sized patch lead
Dressed the runs through cable management for a clean, traceable path
Labelled both ends of every lead and the patch panel ports
Documented the port-to-outlet mapping for the office

Outcome

The cabinet is now tidy, labelled and documented. A connection that used to take an hour to trace can be found in seconds, and changes can be made without any risk to other services.

Questions about this type of repair

How does labelling network cabling help?

When every lead and port is labelled, tracing a fault or moving a desk takes seconds instead of hours, and there is far less chance of unplugging the wrong thing.

Can this be done without downtime?

Mostly. Connections are re-run one at a time so the network stays up, with only brief planned interruptions per lead.

Will we get a record of what is connected where?

Yes. You are left with a port-to-outlet map so the cabinet stays easy to manage even as things change.
